ASRock MB Sc LGA1700 Z790 PG SONIC, Intel Z790, 4xDDR5, 1xDP, 1xHDMI

Popis a parametry

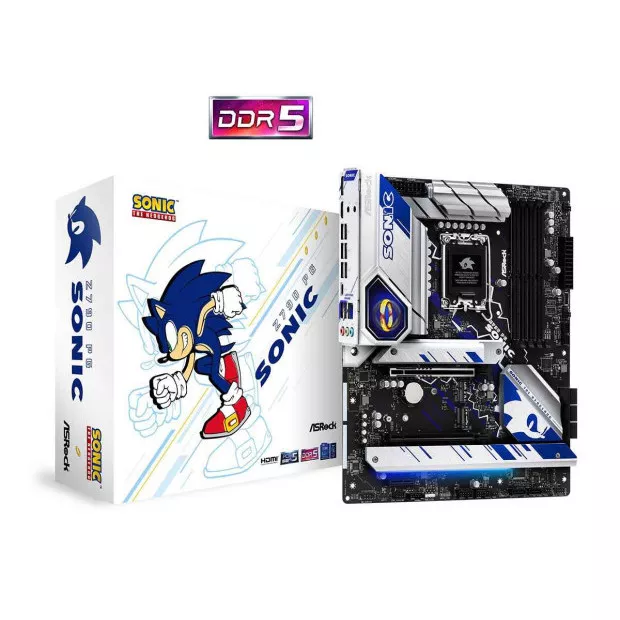

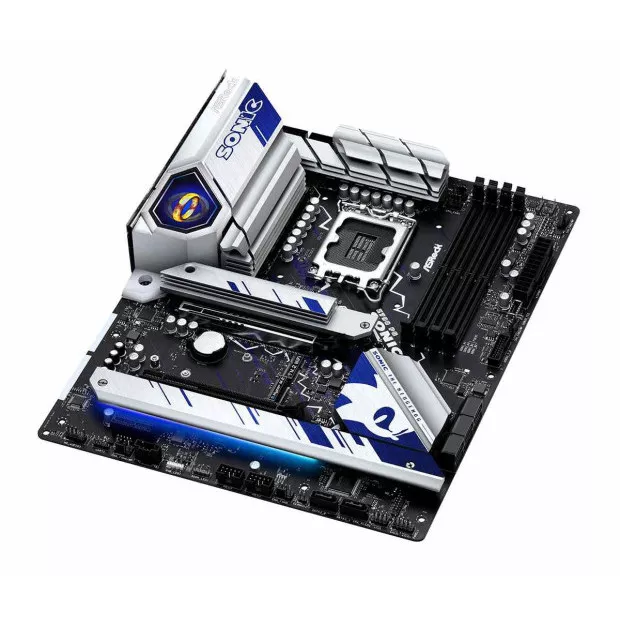

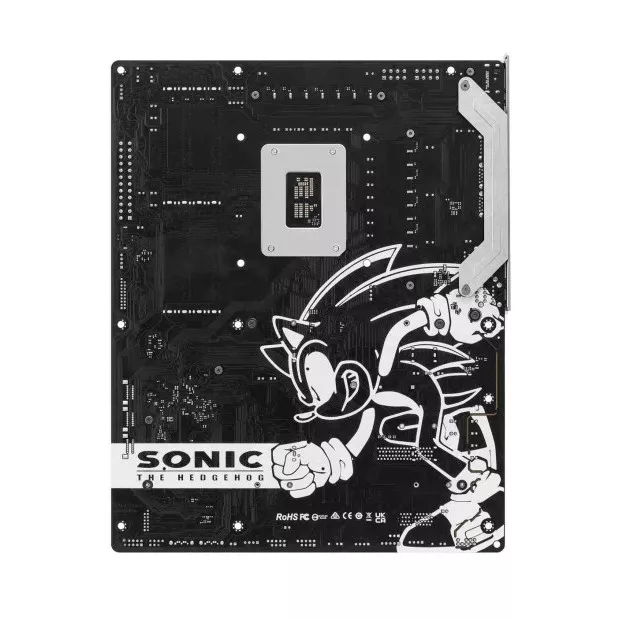

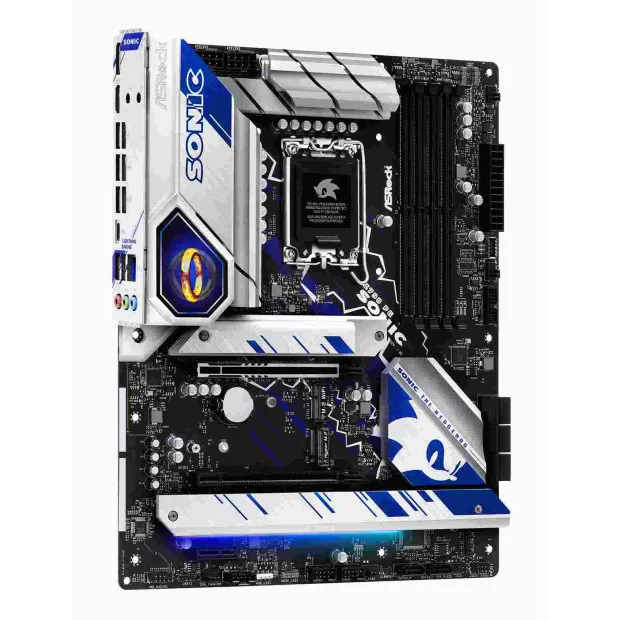

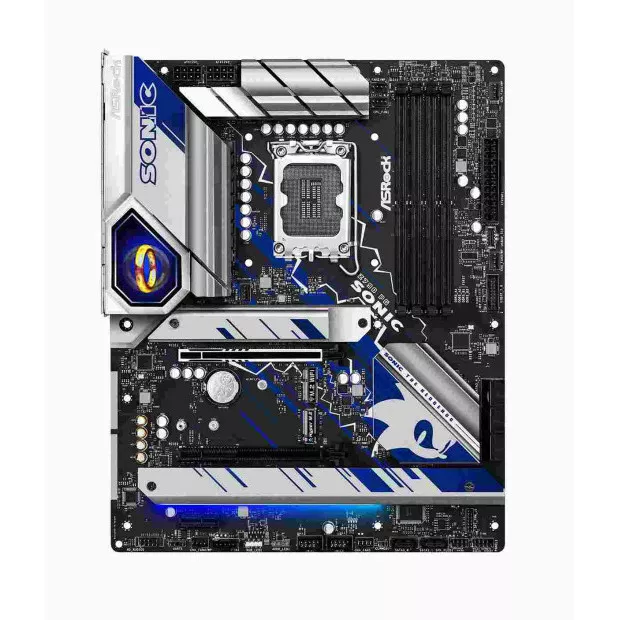

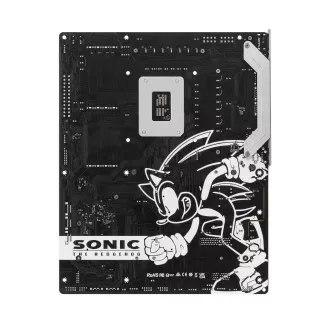

ASRock MB Sc LGA1700 Z790 PG SONIC

Podpora procesorů

Podporuje 13. a 12. generaci procesorů Intel Core™.

Design napájení

14+1+1 fázový design napájení, Dr.MOS pro VCore+GT.

DDR5 DIMM sloty

4 x DDR5 DIMM, podpora až 6800+(OC).

PCIe sloty

1 PCIe 5.0 x16, 1 PCIe 4.0 x16, 1 PCIe 3.0 x1, 1 M.2 Key-E pro WiFi.

Možnosti výstupu grafiky

1 HDMI, 1 DisplayPort.

Audio

7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio.

M.2 sloty

1 Blazing M.2 (PCIe Gen5x4), 4 Hyper M.2 (PCIe Gen4x4), 8 SATA3.

USB porty

1 USB 3.2 Gen2x2 Type-C (Front), 2 USB 3.2 Gen2 Type-A (Rear), 1 USB 3.2 Gen1 Type-C (Rear), 6 USB 3.2 Gen1 Type-A (4 Rear, 2 Front), 6 USB 2.0 (2 Rear, 4 Front).

LAN

Killer 2.5G LAN.

Unikátní vlastnosti

• Superb Productivity- PCIe Gen5 (Graphics, M.2)- Dual Channel DDR5
• Rock-Solid Durability- 14+1+1 Power Phase, 50A Dr.MOS for VCore+GT- Flexible Integrated I/O Shield
• Ultrafast Connectivity- Killer 2.5G LAN- ASRock Lightning Gaming Ports
• EZ Update- ASRock Auto Driver Installer
• EZ Troubleshooter- ASRock Post Status Checker

Podpora technologií

Podpora Intel Hybrid Technology, Intel Turbo Boost Max 3.0 Technology, Intel Thermal Velocity Boost (TVB), Intel Adaptive Boost Technology (ABT).

Chipset

Intel Z790.

Paměť

Dual Channel DDR5 Memory Technology. Max. kapacita systémové paměti: 128GB. Podpora Intel Extreme Memory Profile (XMP) 3.0.

BIOS

128Mb AMI UEFI Legal BIOS s podporou GUI.

Grafika

Intel Xe Graphics Architecture (Gen 12). 1 x HDMI 2.1 TMDS kompatibilní, podporuje HDCP 2.3 a max. rozlišení až 4K 60Hz. 1 x DisplayPort 1.4 s DSC (komprimovaný), podporuje HDCP 2.3 a max. rozlišení až 8K 60Hz / 5K 120Hz.

LAN

2.5 Gigabit LAN 10/100/1000/2500 Mb/s. Killer E3100G. Podpora Killer LAN Software.

Sloty

1 x PCIe 5.0 x16 Slot, 1 x PCIe 4.0 x16 Slot, 1 x PCIe 3.0 x1 Slot, 1 x M.2 Socket. Podpora AMD CrossFire™.

Úložiště

1 x Hyper M.2 Socket, 1 x Blazing M.2 Socket, 1 x Hyper M.2 Socket, 1 x Hyper M.2 Socket, 1 x Hyper M.2 Socket, 8 x SATA3 6.0 Gb/s konektory.

RAID

Podpora RAID 0, RAID 1, RAID 5 a RAID 10 pro SATA úložné zařízení. Podpora RAID 0, RAID 1 a RAID 5 pro M.2 NVMe úložné zařízení.

USB

1 x USB 3.2 Gen2x2 Type-C, 2 x USB 3.2 Gen2 Type-A, 1 x USB 3.2 Gen1 Type-C, 6 x USB 3.2 Gen1 Type-A, 6 x USB 2.0.

Konektory

1 x SPI TPM Header, 1 x Power LED a Speaker Header, 1 x RGB LED Header, 3 x Addressable LED Headers, 1 x CPU Fan Connector, 1 x CPU/Water Pump Fan Connector, 1 x Chassis Fan Connector, 4 x Chassis/Water Pump Fan Connectors, 1 x 24 pin ATX Power Connector, 2 x 8 pin 12V Power Connectors, 1 x Front Panel Audio Connector, 1 x Thunderbolt™ AIC Connector, 2 x USB 2.0 Headers, 1 x USB 3.2 Gen1 Header, 1 x Front Panel Type C USB 3.2 Gen2x2 Header.

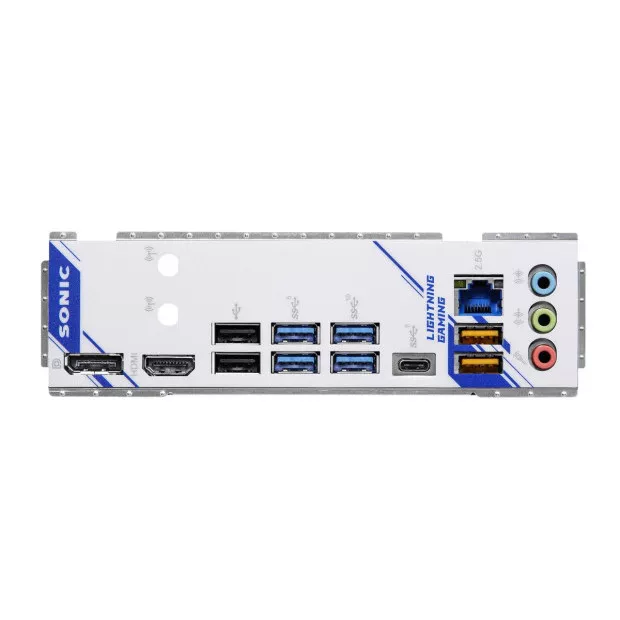

Rear Panel I/O

2 x Antenna Mounting Points, 1 x HDMI Port, 1 x DisplayPort 1.4, 2 x USB 3.2 Gen2 Type-A Ports, 1 x USB 3.2 Gen1 Type-C Port, 4 x USB 3.2 Gen1 Type-A Ports, 2 x USB 2.0 Ports, 1 x RJ-45 LAN Port, HD Audio Jacks: Line in / Front Speaker / Microphone.

Software a UEFI

Software- ASRock Motherboard Utility (Phantom Gaming Tuning), Killer Control Center, ASRock Polychrome SYNC. UEFI- ASRock EZ Mode, ASRock Full HD UEFI, ASRock My Favorites in UEFI, ASRock Auto Driver Installer, ASRock Instant Flash, ASRock Easy RAID Installer.

Příslušenství

1 x uživatelský manuál, 2 x SATA datové kabely, 5 x šrouby pro M.2 sloty.

Form Factor

ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm. 2oz Copper PCB.

OS

Microsoft Windows 10 64-bit / 11 64-bit.

Certifikace

FCC, CE. ErP/EuP ready (ErP/EuP ready power supply is required).
